   NAVIGATION Echosounder

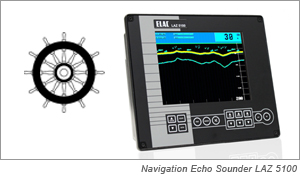

ELAC LAZ 5100 - Navigation Echo Sounder

ELAC LAZ 5100 is the latest navigation echo sounder of Wärtsilä ELAC Nautik, available as single- or dual-frequency unit. Transducers with frequencies from 24 kHz to 200 kHz can be connected - the maximum measuring range is 2,000 m.

The ELAC LAZ 5100 allows a reliable detection of the sea bottom in shallow as well as in deep water. It fulfills the requirements of IMO for navigation equipment and is type-approved by BSH, USCG and CCS.

» Download ELAC LAZ 5100 brochure

» Download ELAC LAZ 5100 manual

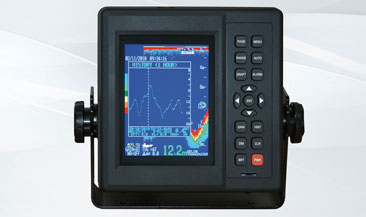

NES 4610

Navigation Echosounder


The single channel NES 4610 provides detailed and reliable depth information and meets the IMO performance standard.
  Operating frequency of 50, 100 or 200 kHz
  Compact 5.7 inch display enables easy and space-saving installation
  Automatic TVG and gain control
  Automatic depth range control
  Comprehensive alarm management
  Cost effecitive due to compact design
  Complies with IMO Resolution MSC.74(69) and MED regulation

Repeater Units
  Universal Digital Display SAM 4900 with depth alarm
